HMI X1 Series

The edge computer that makes production smarter

The standard model of the X1 series from Fuji Electric/Hakko Electronics is an edge computer for data centers designed to make production facilities and customer applications smarter and more efficient.


The X1 series offers comprehensive FA and IT connectivity and flexibility to digitize your business.

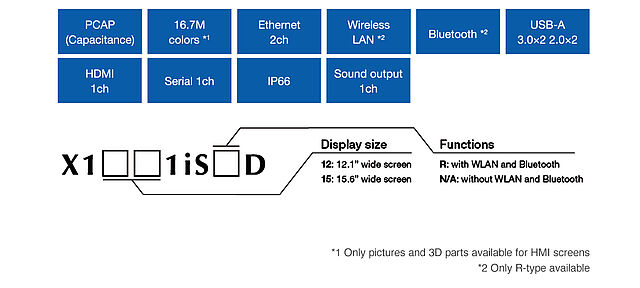

X1151iSD / X1151iSRD / X1121iSD / X1121iSR


Compatible with OPC UA Server and Client

  • The X1 series is equipped with OPC UA server and client so that data can be collected in both offices and production sites.
  • Even if devices at the production site are not compatible with OPC UA, the X1 series can take on the role of a gateway for OPC UA to transmit data to OPC UA clients in the host system.
  • OPC UA enables data sharing between production sites and the host system and facilitates the standardization of devices.

Application example: Workpiece conveyor

The X1 series collects data from multiple machines at production sites and passes it on to the host system via OPC UA. This helps to improve productivity and product quality and facilitates the standardization of devices. Using the X1 series for devices equipped with industrial robots increases the value to the robots that contribute to factory automation.

Cloud (MQTT) compatible

Operation data, production data, status data, etc. are sent via MQTT to the cloud system for collection and storage. It contributes to the visualization and improvement of the factory.

As the system is linked to the Microsoft Azure platform, various tools and frameworks of the cloud service can be used.


Application example: Pharmaceutical equipment

By connecting to the cloud and analyzing, visualizing and identifying trends in the collected data, greater efficiency and improvement of the production system is achieved. In addition, the X1 series helps to ensure safety in pharmaceutical production by installing it on pharmaceutical equipment that requires high-level safety management.

Standardized web browser

Since the X1 series is equipped with a web browser as standard, the browser function can be used in applications and IT systems. In combination with a surveillance system or network cameras, it is possible to monitor different machines on the network and easily check any status.

Use of Windows® applications

Windows® applications can be run freely at production sites. Once the production machines’ engineering tools are installed on the X1 series, it is possible to edit and monitor the program via the X1 series without bringing a PC to the production site.
In addition, by integrating PCs into the X1 series, maintenance tasks and the space required for PCs at the production site can be reduced. The X1 series with Windows® applications improves the versatility and expandability as well as the function of the HMIs.

Vector graphics

Vector graphics allow for high quality and bespoke screen design as they allow parts to be enlarged/reduced while maintaining a clear image.

Application alignment

Active applications can be aligned by pressing the button without using the keyboard or mouse. This feature makes it easier to switch between multiple application windows and improves usability.
