Low voltage Drives

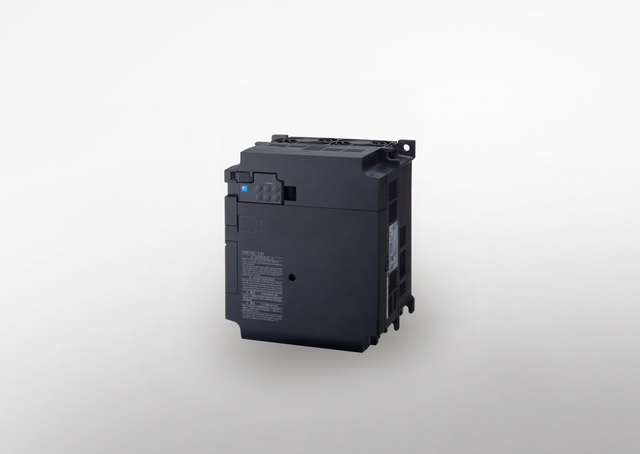

FRENIC-Lift (FRN-LM3S)
Our trusted lift performance at a smarter cost
Welcome to the new generation of elevator inverter. Substituting the LM1 series, FRENIC-Lift LM3 has improved basic performance with the same optimized specifications for elevator applications. Easy to use, contributes to comfortable elevator operations by reducing sway and landing position errors.
Certificates
Features
- Ready out of the box for Permanent Magnet (PM) motors.
- Increased power range up to 55 kW: greater flexibility and performance than previous LM1 models.
- Works with any mains supply: 3-phase 400 VAC, 3-phase 200 VAC, or even single-phase 200 VAC.
- Built-in circuit supports EnDat, Biss-C, and sin/cos encoders.
- Contactorless operation and brake monitor functions certified.
- Integrated rescue function ensures passenger safety during power outages.
- Flexible customizable logic built-in.
- Built-in USB port for PC connection
- Designed with a 10-year life expectancy.
- Fully compliant with international certifications: Europe, US, Canada, Korea.
Built-in option cards:
- OPC-LM-PG3: for incremental encoders with open collector/push-pull and open collector pulse repetition output
Other options:
- Remote keypad (TP-M3)
- Adapter for keypad panel (CBAD-CP)
