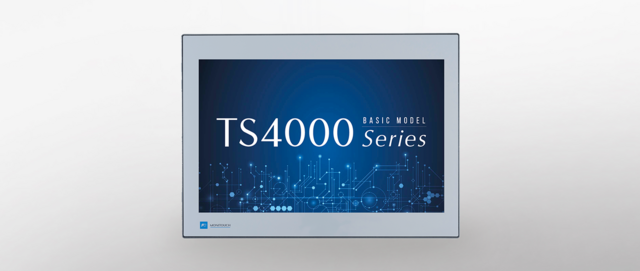

TECHNOSHOT TS4000 series
New Basic model, reliable Japanese quality with advanced network functionality
The new Technoshot 4000, High-resolution widescreen LCD allows precise rendering of both text and parts. Great volume of information can be displayed together on 1 screen at site. It comes equipped with full networking functions. For example, when using the web server function, the same data as at the site can be easily checked in Google Chrome (web browser) and the information collected by TS4000 helps to visualize the site. High quality and cost reduction through efficiency improvements by carrying out all activities from R&D to manufacturing at a single base in Japan.
Features

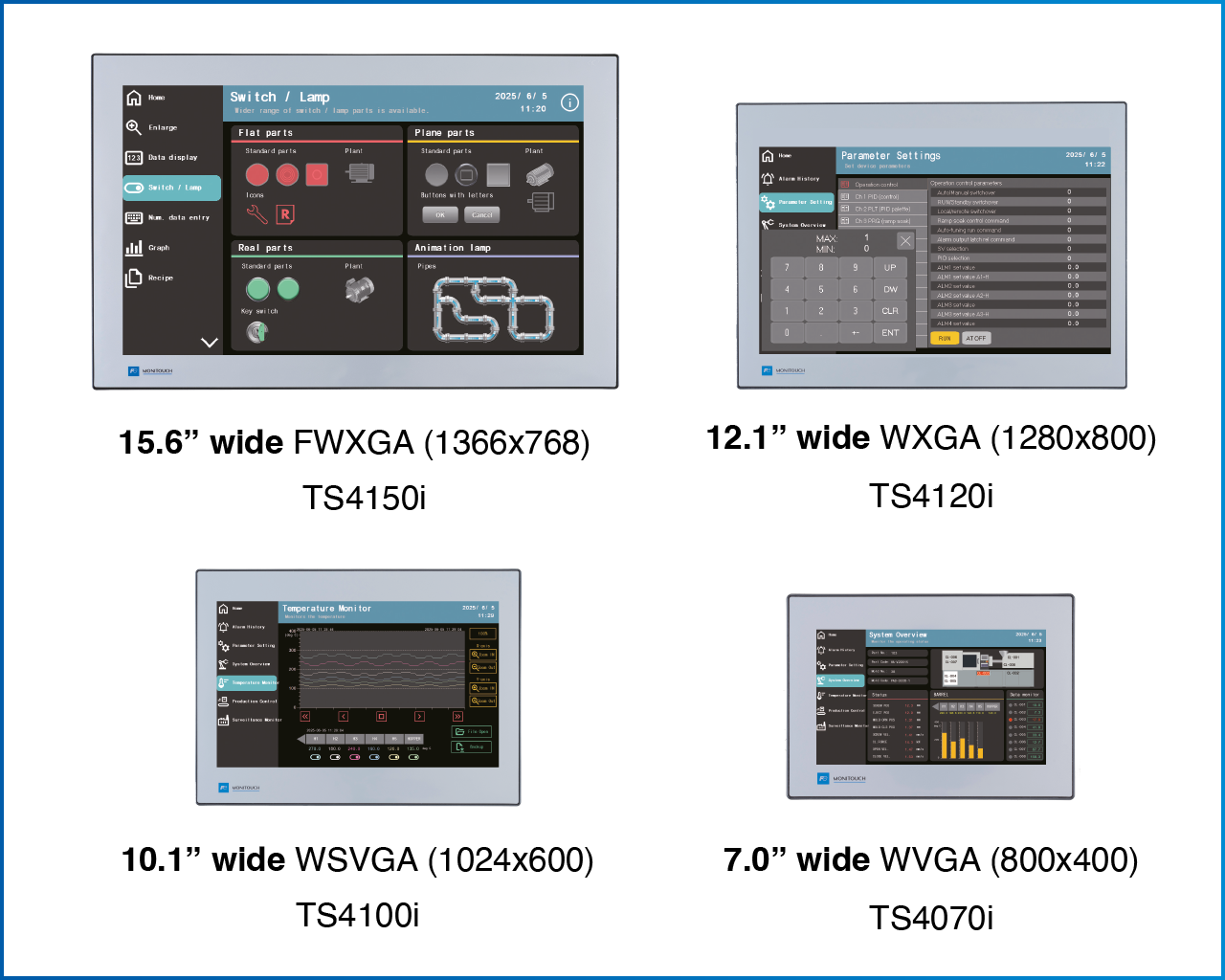

Wide display range
7 inches, 10.1inches, 12,1 inches and 15,6 inches high-resolution widescreen LCD.

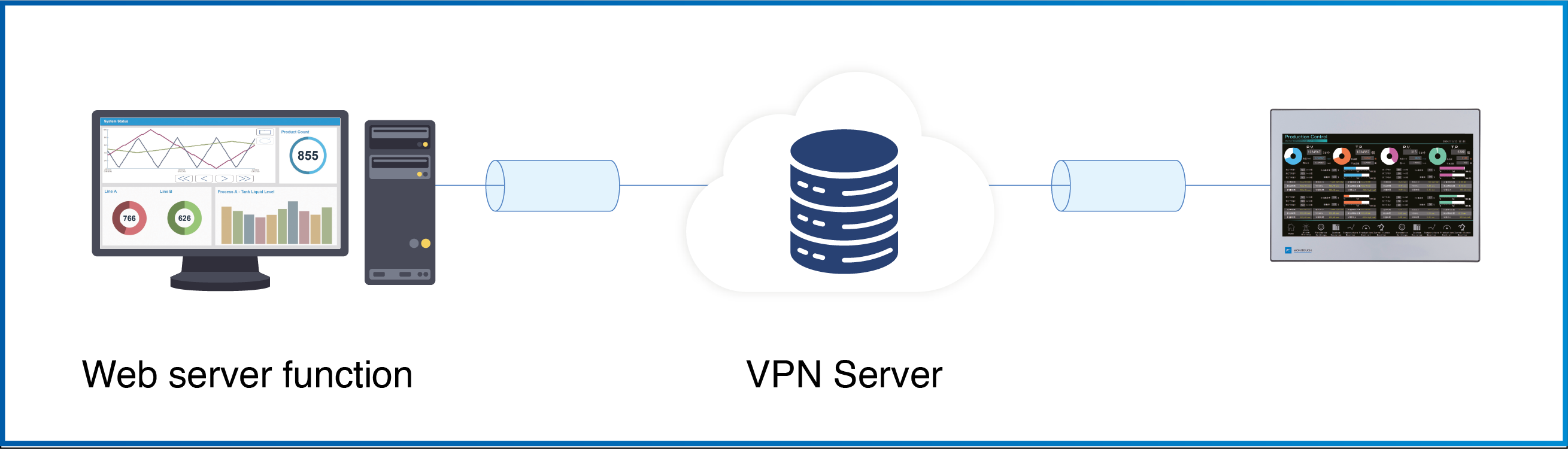

VPN & WEB Server
Secure and inexpensive remote Access with an Internet connection, you can set up a VPN environment only with the TS4000 series, without using a VPN router. SSL-VPN enables bug-proof and tamper-proof communication. Easy remote access to peripherals.
The VPN feature in combination with the WEB Server transforms the TS4000 from a local interface into a versatile, network-accessible control and monitoring hub.

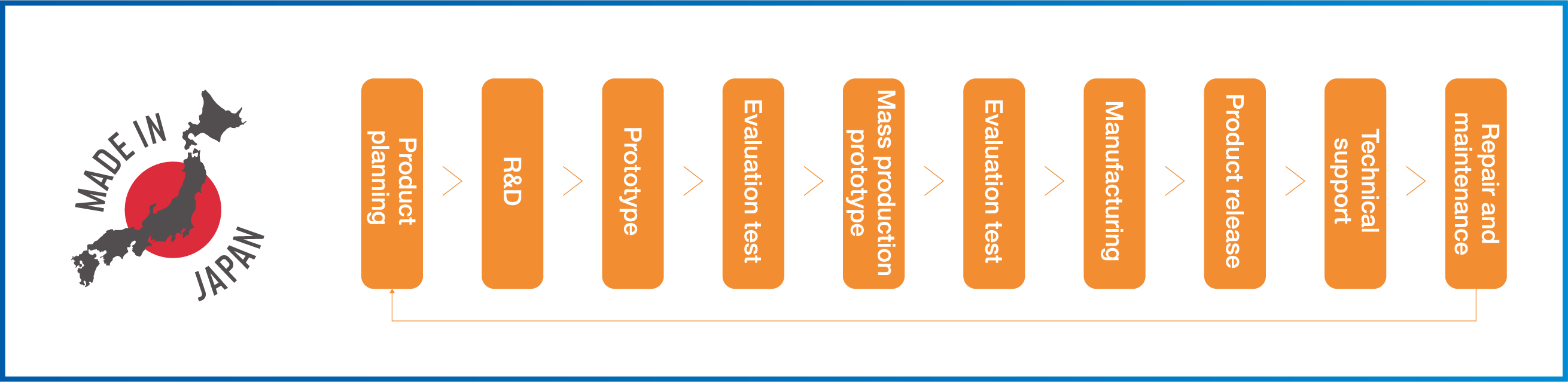

Made in Japan for quality
We have achieved high quality and cost reduction through efficiency improvements by carrying out all activities from R&D to manufacturing at a single base in Japan.

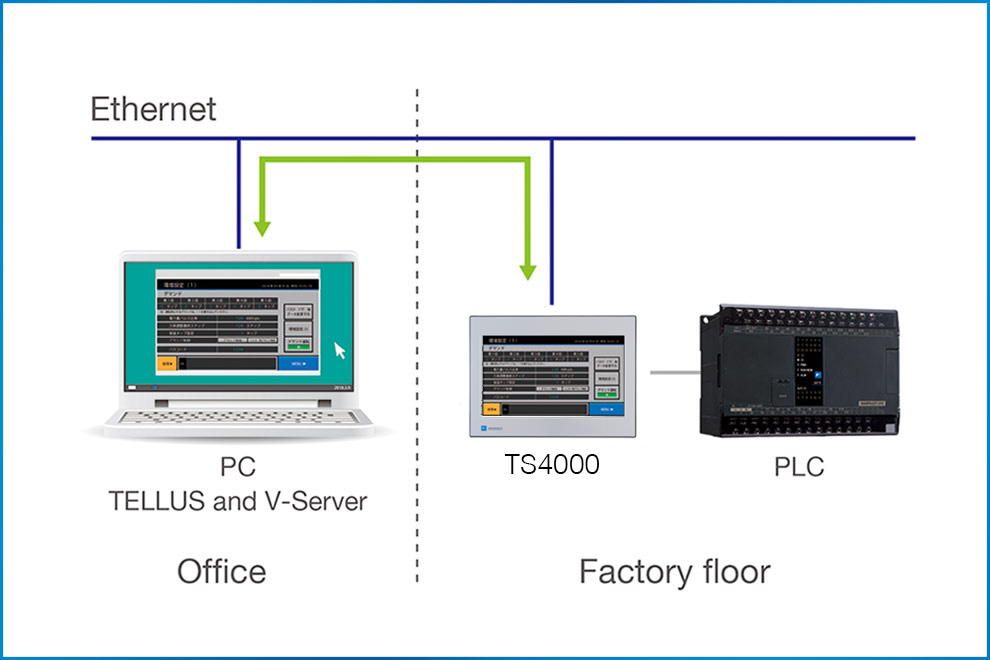

Remote maintenance
With the TELLUS application software, the data in TECHNOSHOT can be monitored and controlled from a remote location at low cost.

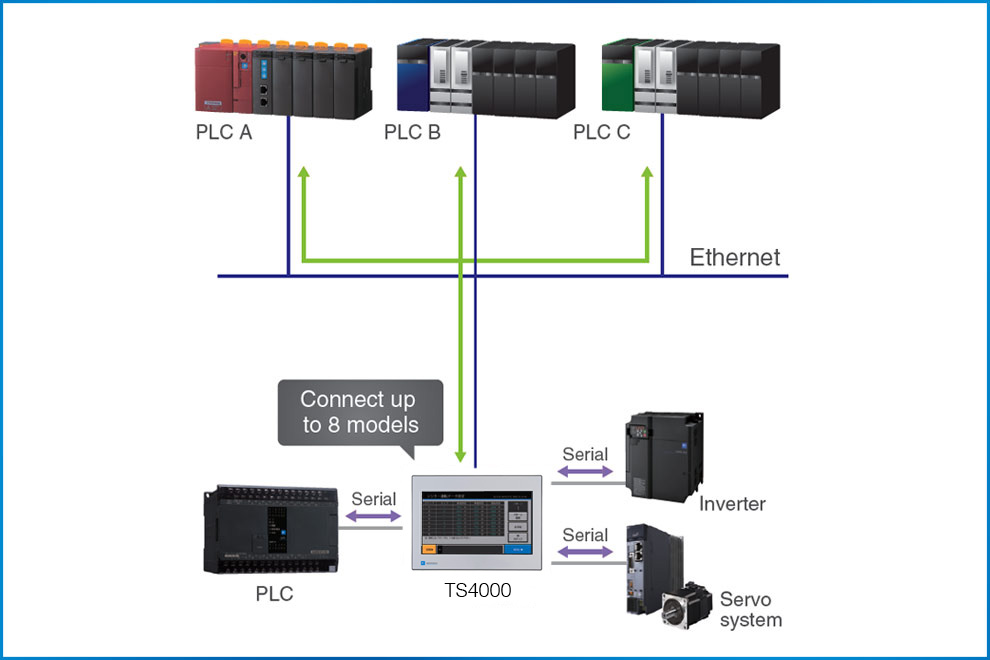

8-way communication
The units can communicate with up to 8 devices from different manufacturers consisting of PLC systems and peripherals simultaneously via Ethernet or serial connections.
* With TS1070S, up to 3 models can be connected.

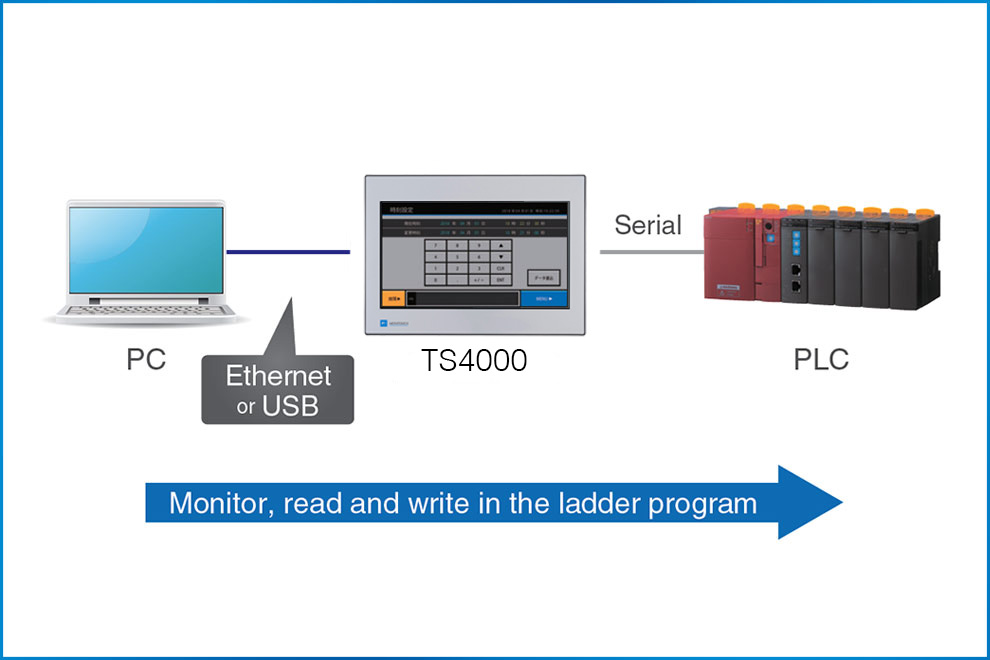

Consistent programming
TECHNOSHOT enables PLC programming (ladder diagram write/read) to/from the PC via Ethernet or USB connections.
Multilingual
You can choose between 16 screen languages without having to manage the language files.
Compatible fonts: English, Western European, Central European, Cyrillic, Greek, Turkish, Baltic, Japanese, Chinese (traditional and simplified) and Korean

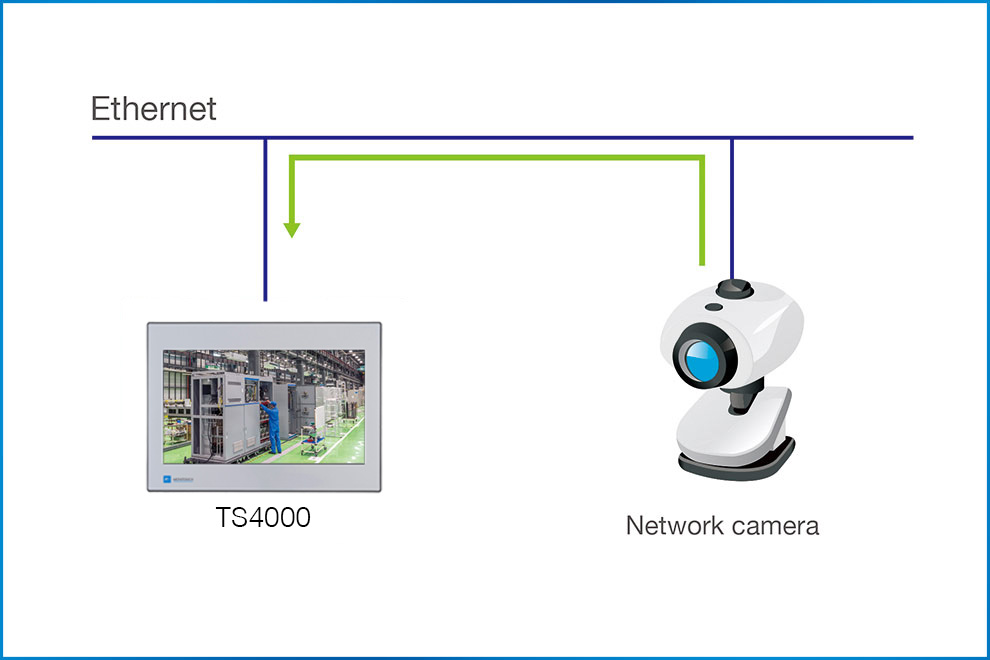

Network camera
Images recorded by network cameras can be displayed on the TECHNOSHOT via Ethernet. This enables the monitoring of production lines, for example.

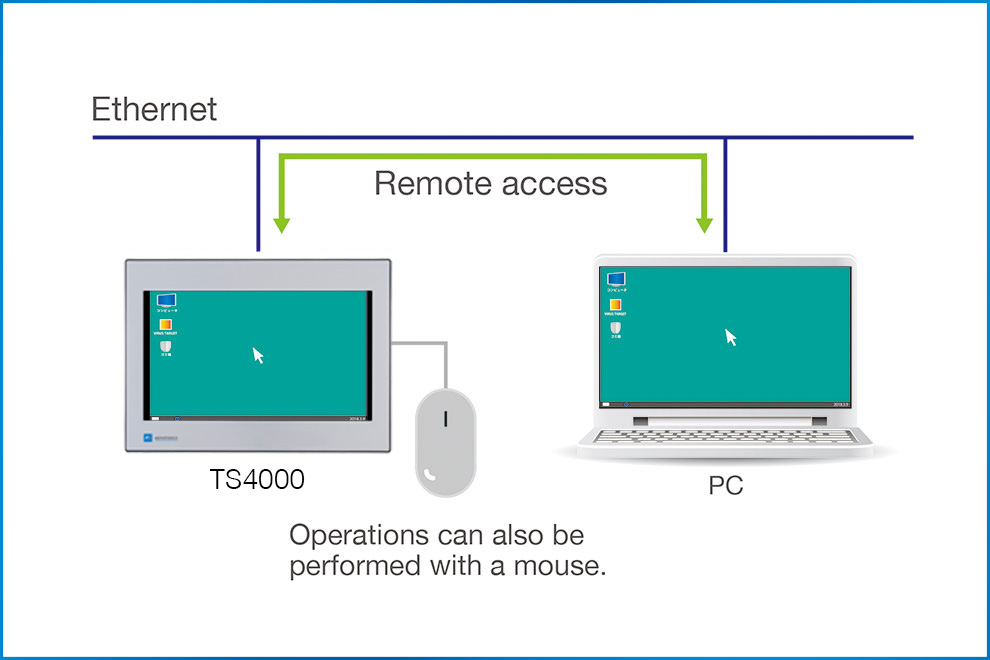

Remote desktop
The screen of the server PC can be displayed and operated on a TECHNOSHOT TS4000 via Ethernet.

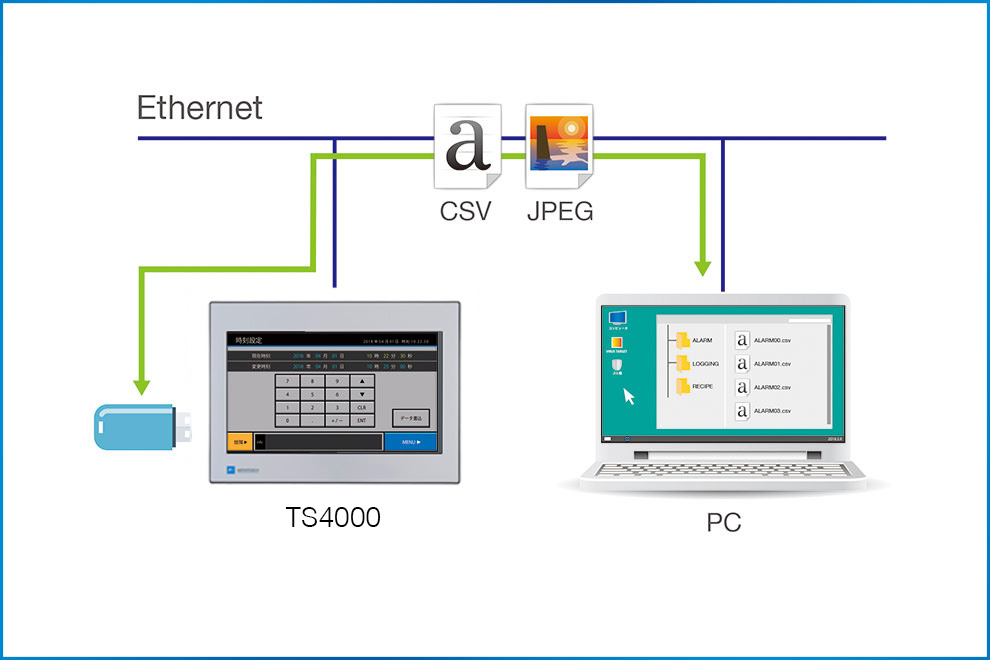

FTP server
Use FTP client tools on a computer to read and write to USB memory mounted on the TS4000.

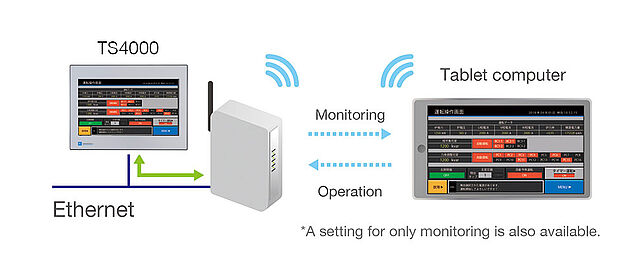

VNC server
You can easily setup the VNC viewer tool on a computer to monitor and operate TS4000 screens on the factory floor from the same computer via an Ethernet connection. In addition, monitoring and operations can be easily performed from a tablet device via a wireless router.

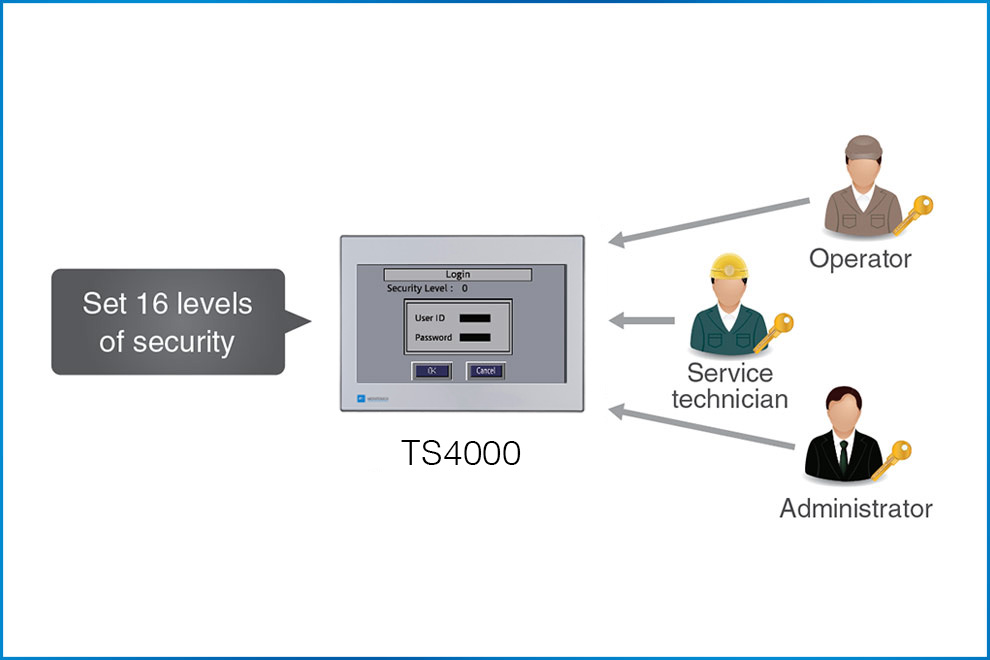

Security features
By setting function restrictions at user level, a high security environment can be created.

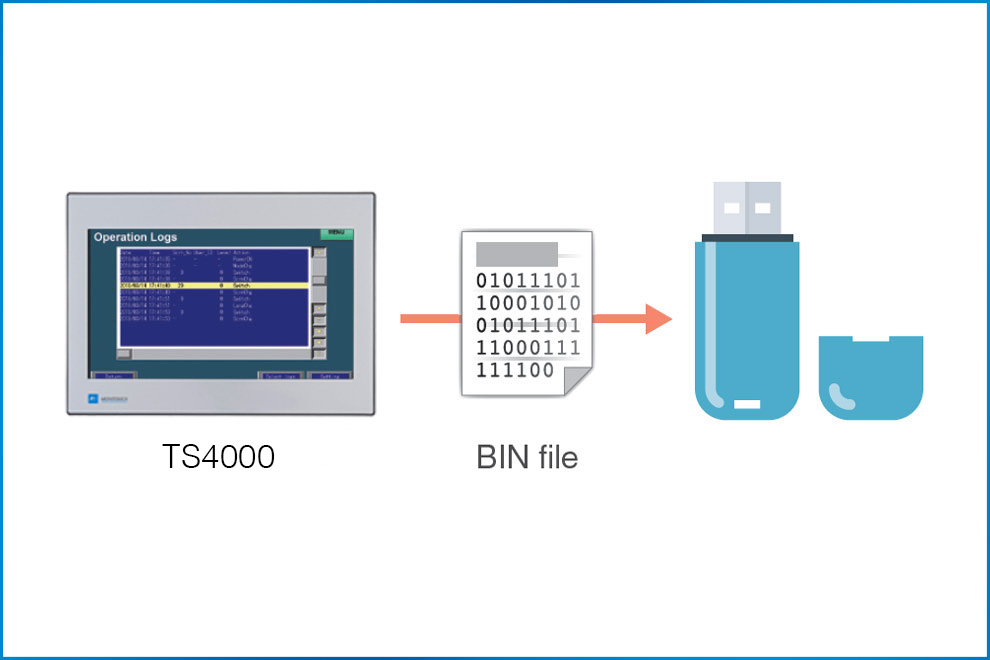

Operation log
The logged operating data (e.g. key operations, input of values) can be viewed, so that the history (information about who/when/what/how) can be checked and the causes of faults can be analyzed.

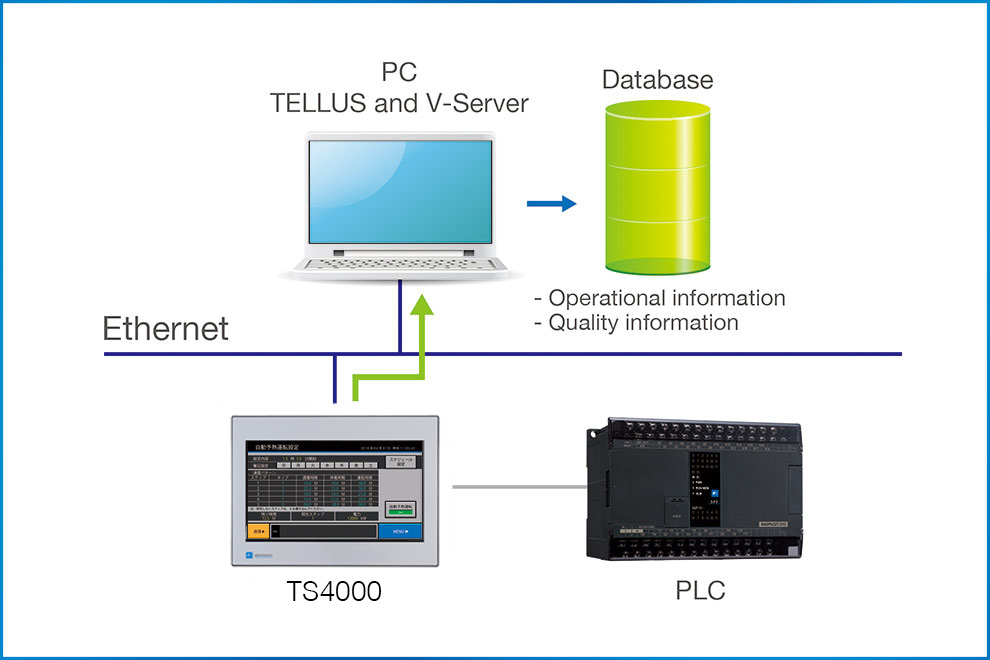

MES (Manufacturing Execution System)
Various types of information such as production performance and causes of faults and downtimes can be collected and stored in the server's database via the TECHNOSHOT and V-Server.

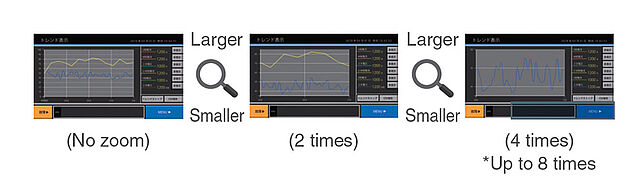

Trend sampling
Various operating data that can change continuously, are recorded and displayed in chronological order in a trend diagram. Zoom in on a specific area of the screen to review changing waveforms of trend graphs in more detail.
Accessories
- TS4070-WP / TS4100-WP / TS4120-WP / TS4150-WP (IP65 gasket):
Gasket for TECHNOSHOT (if IP65 is required)
- Smart Editor (Screen Configuration Software)
