Photoconductors

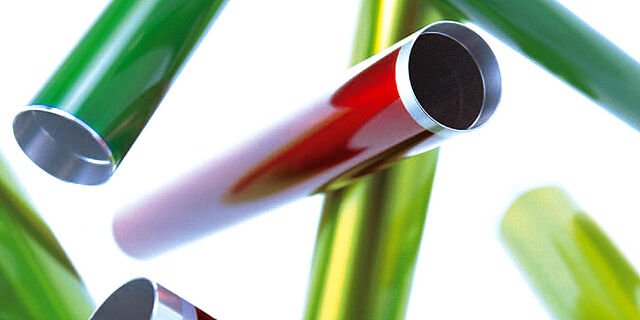

Fuji Electric has a drum for every applicationFuji Electric Imaging Device’s versatility enables it to safety a wide range of individual customer requirements. To obtain clear images in a copier or printer the special sensitivity of the photoconductor drum must meet the wavelength of any light source, LED semiconductor laser, gas laser, and fluorescent, tungsten and halogen lamps.

Fuji Electric’s ultra-fine lamination technology ensures on high performance and high quality.

Made of an organic photoconductor (OPC) drum has a layered structure that is ideal for each electrophotographic imaging. These ultra-fine layers require extremely precise coating techniques to eliminate or even the submicron order. For stable forming of even and smooth layers, Fuji Electric Imaging Device is developing and utilizing unique and lamination technologies. This is one reason the FUJI’s products are highly valued and widely accepted.

Applicable devices

Low-speed printer (up to 20ppm)
Light source LD, LED
Sensitivity E1/2=0.38µJ/cm2
Feature
  • High quality image
  • Light resistance
  • Positive charging OPC
Type 11A
Medium-speed printer (21 to 30ppm)
Light source LD, LED
Sensitivity E1/2=0.26µJ/cm2
Feature
  • High quality image
  • Quick response
  • Light resistance
  • Positive charging OPC
Type     11B
High-speed printer (31 to 40ppm)
Light source LD,LED
Sensitivity  E1/2=0.22µJ/cm2
Feature
  • Quick response
  • Light resistance
  • Long life
  • Positive charging OPC
Type 11C
High-speed printer (41ppm or more)
Light source LD, LED
Sensitivity E1/2=0.18µJ/cm2
Feature
  • High quality image
  • Quick response
  • Light resistance
  • Long life
  • Positive charging OPC
Type  11D
Medium-speed printer (21 to 40ppm) | Digital PPC
Light source LD,LED
Sensitivity  E1/2=0.13 to 0.20µJ/cm2
Feature
  • High quality image
  • Long life
  • Negative charging OPC
Type 8B,10B
Low-speed printer (up to 20ppm) | Digital PPC
Light source LD,LED
Sensitivity  E1/2=0.38 to 0.60µJ/cm2
Feature
  • High quality image
  • Long life
  • Negative charging OPC
Type 8A, 10A
High-speed printer (41ppm or more) Digital PPC
Light source LD,LED
Sensitivity  E1/2=0.08 to 0.13µJ/cm2
Feature
  • High quality image
  • Long life
  • Negative charging OPC
Type 8C, 10C
Low-speed PPC (up to 12cpm)
Light source
  • Fluorescent lamp
  • Tungsten lamp
  • Halogen lamp
Sensitivity  E1/2=01.0 to 1.5 lx.s
Feature
  • Operational stability
  • Negative charging OPC
Type 9F
Low-speed or medium-speed PPC (up to 39cpm)
Light source
  • Fluorescent lamp
  • Tungsten lamp
  • Halogen lamp
Sensitivity  E1/2=0.7 to 1.1 lx.s
Feature
  • Operational stability
  • Negative charging OPC
Type 9C
High-speed PPC (40cpm or more)
Light source Halogen lamp
Sensitivity  E1/2=0.4 to 0.7 lx.s
Feature
  • Quick response
  • Long life
  • Negative charging OPC
Type     9E



Get the competitive edge by taking advantage of Fuji Electric’s continuing R and D of materials and manufacturing technology.

Even with the prevalence of computer networks, the demand for printed media continues to grow.  Fuji Electric is continuously developing new materials for photoconductor drums to produce print images of the highest quality. To protect the environment and health, Fuji Electric performs safety tests on all photoconductive materials Fuji Electric use. The peripheral components of a photoconductor drum and its related components also affect the performance and life of the drum. Fuji Electric has a considerable experience in the use of powerful techniques for examining the electrophotographic process and expertise in analyzing materials of developer, paper and cleaning sections of imaging devices. To achieve the optimum performance from a photoconductor drum, Fuji Electric is also continuing to enhance its precision manufacturing technology. Fuji Electric challenges itself to be innovative in the improvement of the development and manufacturing of photoconductor drums.
